Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.
It is called vehicular articulated boom lift, also named vehicle folding arm lift. This type lift could be used in large space, with 360 degree working scope in the aerial.
At the ground, one worker control the truck to move forward and backward. In aerial, single operation, adjusting the lifting height. Lifting power and traveling power are all from the truck, with hydraulic system, diesel power.
Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 120 ton and outreach over 25 meters.
Dongfeng 6X4 Truck with 12 Ton XCMG Telescoping Boom Crane
| Chassis | |||||
| Drive Model | 6x4, Left hand drive | ||||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 12000*2500*3850 | |||
| Wheel base (mm) | 5900+1300 | ||||
| Weight in KGS | Curb Weight (kg) | 15600 | |||
| Gross weight(kg) | 24900 | ||||
| Front/Rear axle loading(kg) | 5500/11500 | ||||
| Max. driving speed(km/h) | 90 | ||||
| Engine | Horse Power(HP) | 240 | |||
| Emission standard | Euro II | ||||
| Gearbox | 8 forwards & 1 reverse | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Brakes | Air Brake | ||||
| Tire | 10.00-20 tire, 10pcs with 1 spare tire | ||||
| Upper Cargo | |||||
| Material | Q235B | ||||
| Dimension | 8500X2300X550mm | ||||
| Thickness | 3mm for side /4 mm for the bottom | ||||
| Technical parameter of crane | |||||
| Crane Model | 12Ton 4 Arms Knuckle Boom Crane | ||||
| Crane Weight | 4316kg | ||||
| Max. Lifting capacity | 12000kg | ||||
| Max lifting height | 14.5M | ||||
| Working radius | 12.5M | ||||
| Max. Oil flow of hydraulic system | 63L/min | ||||
| Max. Pressure of Hydraulic system | 26MPa | ||||
| Oil tank capacity | 160L | ||||
| Installation space | 4316 mm | ||||
| Rotation angle | 360 degree All rotation | ||||
| Remarks |
1.Color is optional 2.Customized LOGO painting as per customer request |
||||

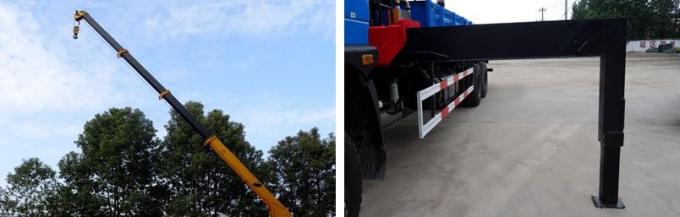

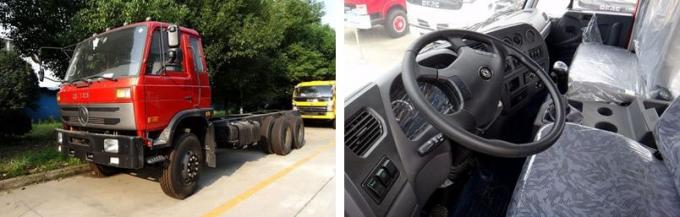

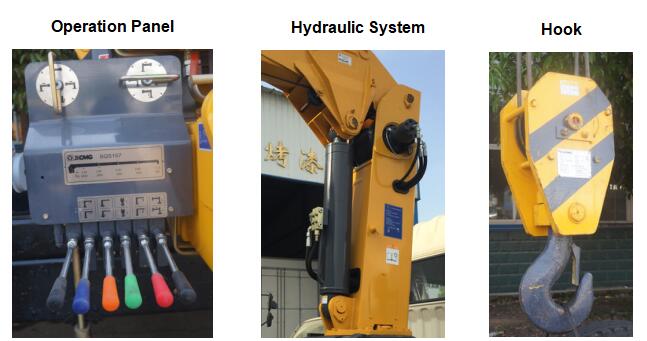

Product details

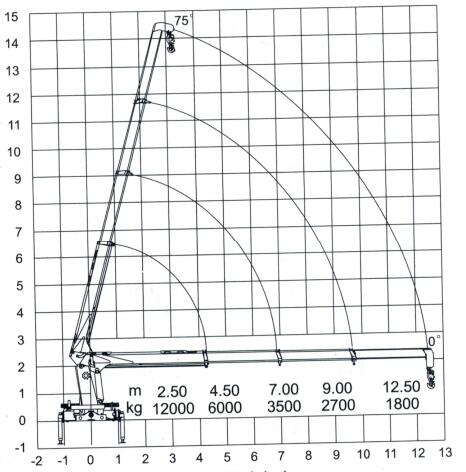

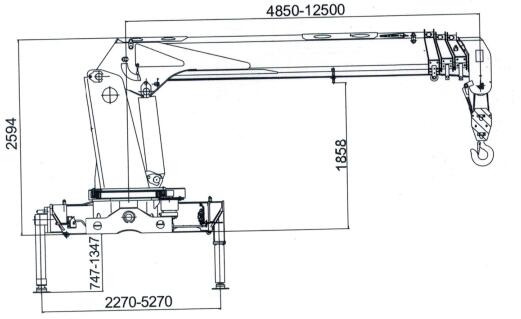

Crane Technical Drawing:
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted straight arm crane I can order from your company?
A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied truck mounted straight arm crane to any overseas companies?
A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
10Ton Folded Kunckle Crane on Dongfeng 6x4 Truck：
Truck Brand: Dongfeng
Chassis: 6x4, left driver
Engine Brand: Cummins, 210HP
Gearbox: Manual, 6 Forward &1 Reverse
Crane Brand: XCMG
Max lifting capacity: 10Ton
Max lifting capacity: 25 T.M
Crane Boom Type: Folded Kunckle
Rotation angle: 360 All Rotation
Max extension length: 11.5m
Truck Crane is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes:
* Lifting Capacity： from 2 ton to 200 ton lifting capacity crane truck
* Crane Types: straight arm and foldable arm crane trucks with or without remote control
* Chassis Brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, Dayun, etc.
* Crane Brand: XCMG, SANY PALFINGER, ChenLi and Other Chinese Brand
* Factory direct sale, low price and good quality
HOWO、Dongfeng 4x2、6x2、6x4、8x4 2-150 Tons Crane and Trucks for sale
Standard configuration
4x2/6x2/6x4/8x4 truck chassis,sub frame,van body,straight arm truck crane equipped between the cabin and van body,mechanical leg.
Selective configuration
2-20 tons straight arm truck crane,1-160 tons folding arm truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat.
Crane
Equipped with world famous brand XCMG crane.
16-32 meters High Altitude Working Vehicle，Aerial Platform Truck：
* Driving type 4*2, left hand drive
* Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
* The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
* Full Computer Control System with Danger Waring System.
* LCD Screen in Both the Bucket and Truck to Display the Working Status.
* Rectangular Shape Arms to Increase the Arm Strength.
* V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
* Working platform rating loading≤200kg,
* Working platform rating allowable passengers=2,
* 360°turning(left or right), 4 H-shape legs.
* The cage be operated both in the air and on the earth
* Control System: Manually
* Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg
10 Ton XCMG Streight Boom Cranes on Dongfeng 6X2 Truck：
Truck Brand: Dongfeng
Chassis: 6x2,left driver
Engine：Cummins 210HP，EURO 2
Crane Brand: XCMG
Max lifting capacity: 10Ton
Max lifting capacity: 25 T.M
Crane Boom Type: Straight Crane
Rotation angle: 360 All Rotation
Max extension length: 11.5m
