Crane Brand: SANY,XCMG,CHENGLI And Other Chinese Brand
Heavy Duty Cargo Chassis
H Shape Hydraulic front & Rear Leg for safety.
Folded Arm & Telescopic Straight Arm Crane for option.
Crane capacity of truck mounted straight arm crane: 2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,14ton,16ton,20ton
Truck Brand: Dongfeng,Howo,FAW,Foton,JAC,JMC,ISUZU
| Chassis parameters | Unit | Dongfeng 6*2 210hp Truck |
| Vehicle size | (mm) | 10200×2500×3120 |
| A/D angle | 30/14 | |
| Total mass | (Kg) | 24600 |
| Curb weight | (Kg) | 9405 |
| Chassis model | DFS1251GLJ5 | |
| Wheels | 3 | |
| Wheelbase | mm | 4350+1300 |
| Wheel loading | kg | 6990/18000 (double axles ) |
| Steel spring NO. | pc | 9/13 |
| Tyre NO. | pcs | 10+1 |
| Tyre size | 10.00-20 | |
| Front tread | mm | 1940 |
| Rear traad | mm | 1860/1860 |
| Engine | B210 33,cummins engine | |
| Engine horsepower | HP | 210 |
| Engine power | KW | 155 |
| Engine displacement | ML | 5900 |
| Engine stanrdard | Water cooled,inline,Euro III, | |
| Cylinder | pcs | 6 |
|
吊机的参数 Truck with loading crane |
项目ITEM |
单位 UNITS |
吊机型号 |
|

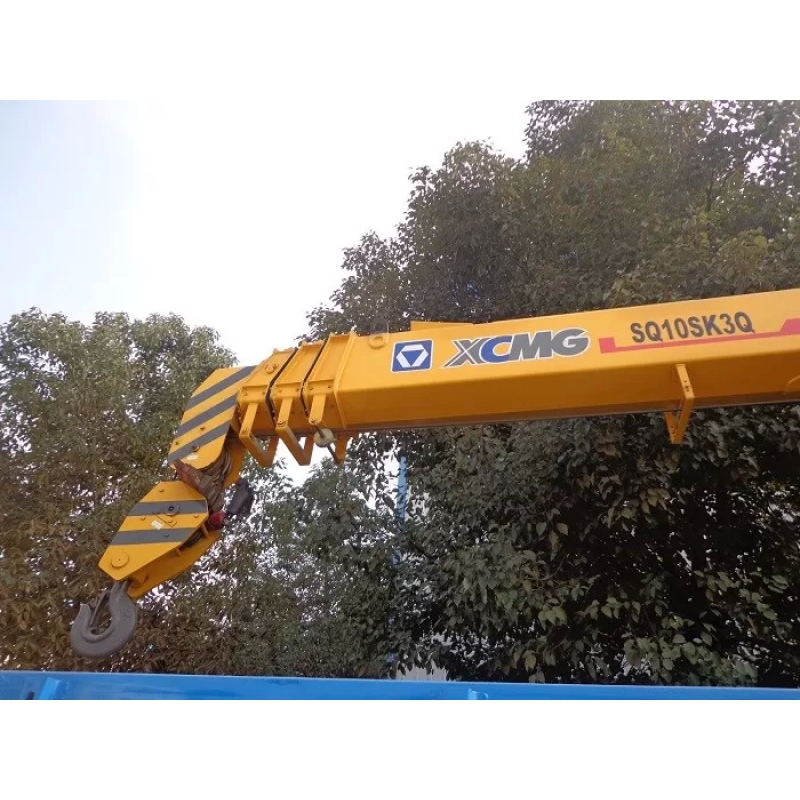

SQ10SK3Q |
|||
|
最大起重质量Max lifting capacity |
KG |
10000 |
|
|
最大起重力矩Max lifting capacity |
T.M |
25 |
|
|
推荐功率Recommend power |
KW |
30 |
|
|
液压系统最大流量Max oil flow |
L/MIN |
63 |
|
|
液压系统额定压力Max pressure |
MPA |
26 |
|
|
油箱容积Oil Tank Capacity |
L |
160 |
|
|
起重机自重Crane weight |
KG |
3800 |
|
|
安装空间Installation space |
MM |
1150 |
|
|
回转角度Rotation angle |
DEGREE |
360 All Rotation |
|
|
最大工作幅度Max extension length |
MM |
11500 |
|
|
最大工作高度Max lifting height |
MM |
13000 |
|
|
最大仰角Max elevation |
DEGREE |
75 |
FAQ
Q1: What kinds of truck mounted straight arm crane I can order from your company?
A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied truck mounted straight arm crane to any overseas companies?
A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
HOWO、Dongfeng 4x2、6x2、6x4、8x4 2-150 Tons Crane and Trucks for sale
Standard configuration
4x2/6x2/6x4/8x4 truck chassis,sub frame,van body,straight arm truck crane equipped between the cabin and van body,mechanical leg.
Selective configuration
2-20 tons straight arm truck crane,1-160 tons folding arm truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat.
Crane
Equipped with world famous brand XCMG crane.
Truck Crane is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes:
* Lifting Capacity： from 2 ton to 200 ton lifting capacity crane truck
* Crane Types: straight arm and foldable arm crane trucks with or without remote control
* Chassis Brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, Dayun, etc.
* Crane Brand: XCMG, SANY PALFINGER, ChenLi and Other Chinese Brand
* Factory direct sale, low price and good quality
10 Ton XCMG Streight Boom Cranes on Dongfeng 6X2 Truck：
Truck Brand: Dongfeng
Chassis: 6x2,left driver
Engine：Cummins 210HP，EURO 2
Crane Brand: XCMG
Max lifting capacity: 10Ton
Max lifting capacity: 25 T.M
Crane Boom Type: Straight Crane
Rotation angle: 360 All Rotation
Max extension length: 11.5m
10Ton Folded Kunckle Crane on Dongfeng 6x4 Truck：
Truck Brand: Dongfeng
Chassis: 6x4, left driver
Engine Brand: Cummins, 210HP
Gearbox: Manual, 6 Forward &1 Reverse
Crane Brand: XCMG
Max lifting capacity: 10Ton
Max lifting capacity: 25 T.M
Crane Boom Type: Folded Kunckle
Rotation angle: 360 All Rotation
Max extension length: 11.5m
16-32 meters High Altitude Working Vehicle，Aerial Platform Truck：
* Driving type 4*2, left hand drive
* Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
* The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
* Full Computer Control System with Danger Waring System.
* LCD Screen in Both the Bucket and Truck to Display the Working Status.
* Rectangular Shape Arms to Increase the Arm Strength.
* V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
* Working platform rating loading≤200kg,
* Working platform rating allowable passengers=2,
* 360°turning(left or right), 4 H-shape legs.
* The cage be operated both in the air and on the earth
* Control System: Manually
* Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg
