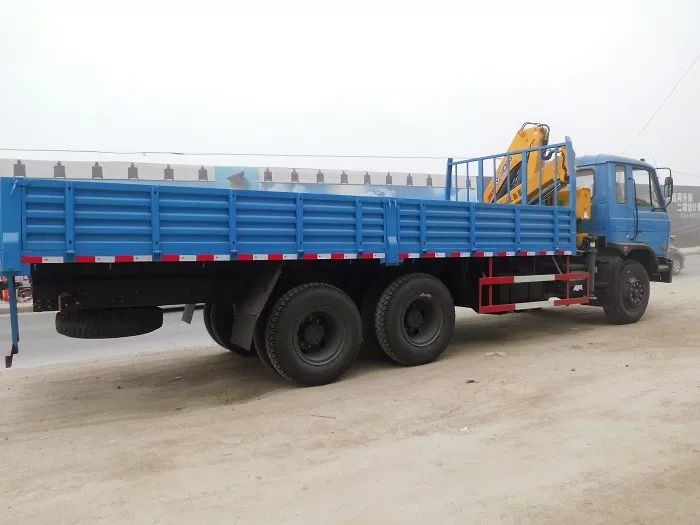

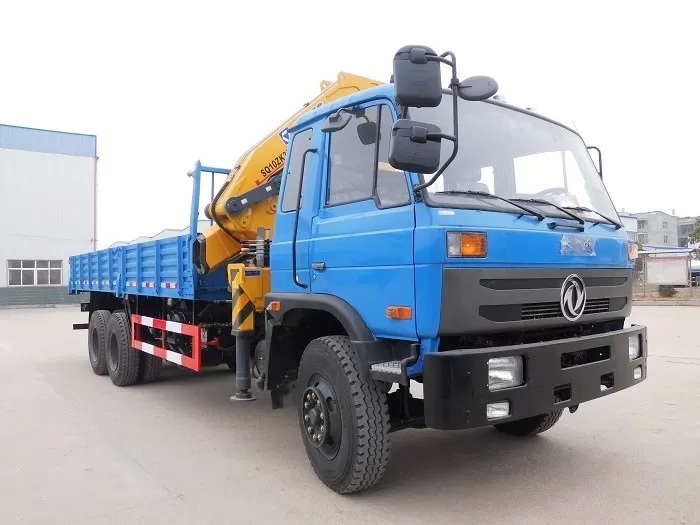

Product Specification of 10Ton truck mounted crane
|
Classify |
Items |
Parameters |
|
Chassis |
Manufacturer |
Dongfeng |
|
Cab |
153, Extended |
|
|
Model of chassis |
EQ5201GFJ6 |
|
|
Total weight |
11850 kg |
|
|
Load capacity |
12855 kg |
|
|
Max speed |
90 km/h |
|
|
Overall dimension |
10800×2500×3900 mm |
|
|

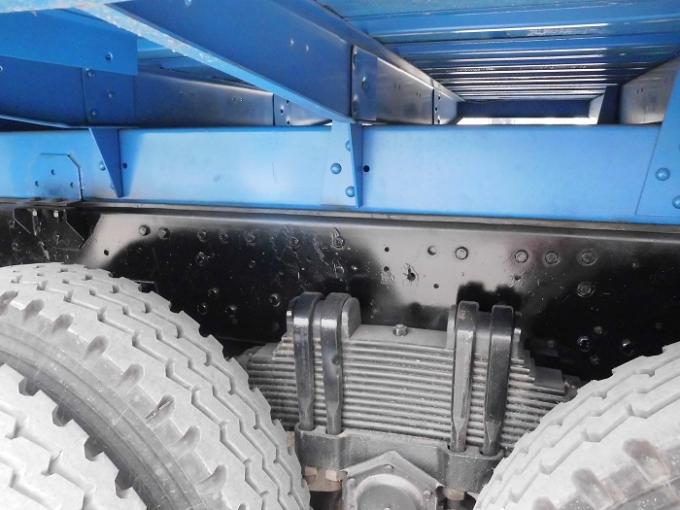

Frame |
Height：300mm Layer：2，3 in part Special purpose for Crane |
|
|
Carriage dimension |
8400×2294×550 mm |
|
|
Passengers |
3 |
|
|
Wheelbase |
4350+1300 mm |
|
|
Distance of front and rear wheels |
1940/1860/1860 mm |
|
|
Drive mode/Number of shafts |
6X4/3 |
|
|
Shaft Loading |
5T/10Tx2 |
|
|
Tyre Number |
10 |
|
|
Tyre Type |
10.00R20 |
|
|
Approaching angle/Departure angle |
34/16° |
|
|
Front suspension/Rear suspension |
1250/3530 mm |
|
|
Engine |
Model of engine |
B210-33(EGR) |
|
Power of engine |
155KW/190Hp |
|
|
Engine output volume |
5900 ml |
|
|
Exhaust standard |
Euro Ⅲ |
|
|
Motor manufacturer |
Dongfeng Cummins Engine CO.，LTD |
|
|
Gearbox |
Manufacturer |
Foster |
|
Model |
8JS85E |
|
|
Block Number |
8 |
|

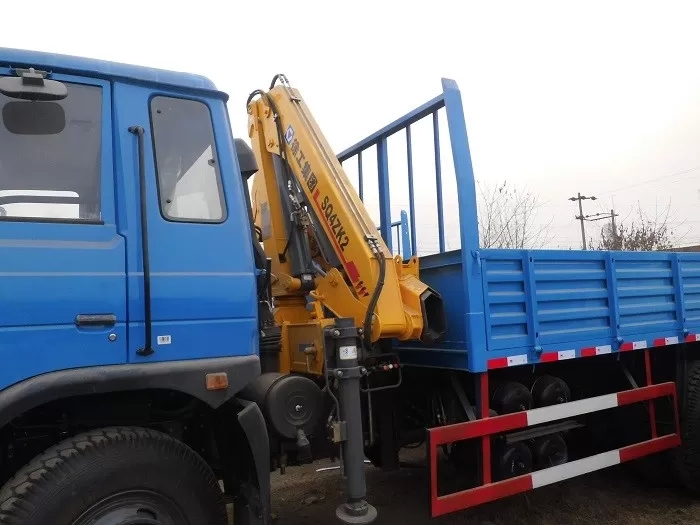

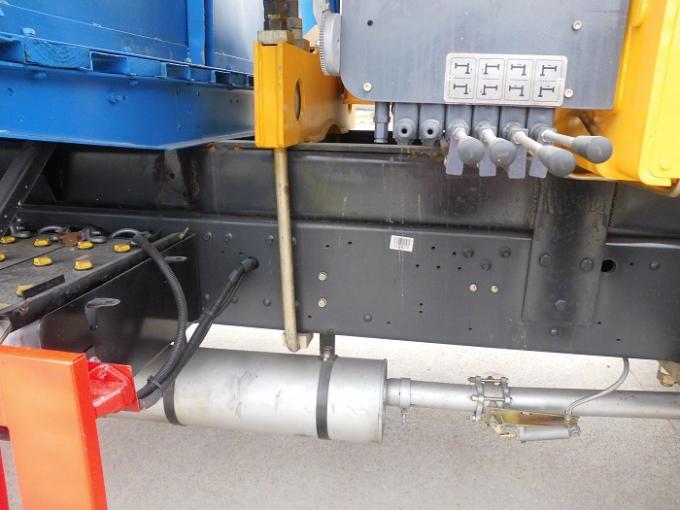

Truck with loading crane |
ITEM |
UNITS |
Crane model |
|
SQ10SK3Q |
|||
|
Max lifting capacity |
KG |
10000 |
|
|
Max lifting capacity |
T.M |
25 |
|
|
Recommend power |
KW |
30 |
|
|
Max oil flow |
L/MIN |
63 |
|
|
Max pressure |
MPA |
26 |
|
|
Oil Tank Capacity |
L |
160 |
|
|
Crane weight |
KG |
3800 |
|
|
Installation space |
MM |
1150 |
|
|
Rotation angle |
DEGREE |
360 All Rotation |
|
|
Max extension length |
MM |
11500 |
|
|
Max lifting height |
MM |
13000 |
|
|
Max elevation |
DEGREE |
75 |
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of 10ton truck mounted crane I can order from your company?
A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied 10ton truck mounted crane to any overseas companies?
A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
10 Ton XCMG Streight Boom Cranes on Dongfeng 6X2 Truck：
Truck Brand: Dongfeng
Chassis: 6x2,left driver
Engine：Cummins 210HP，EURO 2
Crane Brand: XCMG
Max lifting capacity: 10Ton
Max lifting capacity: 25 T.M
Crane Boom Type: Straight Crane
Rotation angle: 360 All Rotation
Max extension length: 11.5m
HOWO、Dongfeng 4x2、6x2、6x4、8x4 2-150 Tons Crane and Trucks for sale
Standard configuration
4x2/6x2/6x4/8x4 truck chassis,sub frame,van body,straight arm truck crane equipped between the cabin and van body,mechanical leg.
Selective configuration
2-20 tons straight arm truck crane,1-160 tons folding arm truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat.
Crane
Equipped with world famous brand XCMG crane.
10Ton Folded Kunckle Crane on Dongfeng 6x4 Truck：
Truck Brand: Dongfeng
Chassis: 6x4, left driver
Engine Brand: Cummins, 210HP
Gearbox: Manual, 6 Forward &1 Reverse
Crane Brand: XCMG
Max lifting capacity: 10Ton
Max lifting capacity: 25 T.M
Crane Boom Type: Folded Kunckle
Rotation angle: 360 All Rotation
Max extension length: 11.5m
16-32 meters High Altitude Working Vehicle，Aerial Platform Truck：
* Driving type 4*2, left hand drive
* Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
* The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
* Full Computer Control System with Danger Waring System.
* LCD Screen in Both the Bucket and Truck to Display the Working Status.
* Rectangular Shape Arms to Increase the Arm Strength.
* V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
* Working platform rating loading≤200kg,
* Working platform rating allowable passengers=2,
* 360°turning(left or right), 4 H-shape legs.
* The cage be operated both in the air and on the earth
* Control System: Manually
* Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg
Truck Crane is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes:
* Lifting Capacity： from 2 ton to 200 ton lifting capacity crane truck
* Crane Types: straight arm and foldable arm crane trucks with or without remote control
* Chassis Brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, Dayun, etc.
* Crane Brand: XCMG, SANY PALFINGER, ChenLi and Other Chinese Brand
* Factory direct sale, low price and good quality
