Dongfeng 6X4 18CBM 18000Liters Sewage Fecal Vacuum Suction Truck with Hydraulic Lifting System
Product Description
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Product Specification
| Vehicle Description | |
| Overall dimensions | 9800*2500*3700mm |
| GVW | 25000kg |
| Mass in working order | 12800kg |
| Chassis brand | DONGFENG |
| Traction type | 6*4 |
| Tanker Description | ||
| Tanker | Capacity | 18000L |
| Material | 6mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Pump | Type | Double vacuum pump |
| Flux | 68(L/S) | |
| Rating speed | 800~1000(r/min) | |
| Shaft power | 5(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
| Pipe | Suction and discharge pipe | |
| Special function |
Suction time ≤ 5mins, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 |
|
| Standard configuration |
Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
| Optional configuration |
Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank |
|
| Chassis Description | ||
| Chassis model | Dongfeng Tianlong | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. | |
| Traction type | LHD | |
| Drive type | 6x4 | |
| Wheelbase | 4350+1300mm | |
| Tire specification | 11.00R20 | |
| Tire quantity | 10+1 units | |
| Engine | Engine model | C260 33 |
| Emission level | Euro 2 | |
| Displacement/output | 8300ml/191kw | |
| Horse power | 260hp | |
| Gear box | Model | 9JS119T-B |
| Number of gears | 9 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | |
| Axle | Front | 7T- Elliot type, I beam section |
| Rear | 10T*2-Single reduction, ratio 5.143 | |
| Suspension | Front | 8/8- Leaf spring with shock absorber |
| Rear | 9/9-Leaf spring | |
| Fuel tanker | Type | Steel fuel tank, with lockable cap |
| Capacity | 350L | |
| Chassis Brand: | Dongfeng, Foton, Sinotruk HOWO, Isuzu, Etc. | Drive Model: | Right Hand Drive & Left Hand Drive |
|---|---|---|---|
| Wheelbase: | 4350+1350 Mm | Engine Power: | 245HP |
| Tank Capacity: | 2cbm 2m3 2cubic Meter 2000liters 2t 3t | Tank Material: | 6mm Carbon Steel |
| Vacuum Pump: | Famous International Brand | Sewage Suction Pipe: | 8m |
| Suction Time: | No More Than 5mins | Effective Suction: | No Less Than 8m |
| Logo And Pattern: | As Customer's Request | Warranty: | 1 Year |

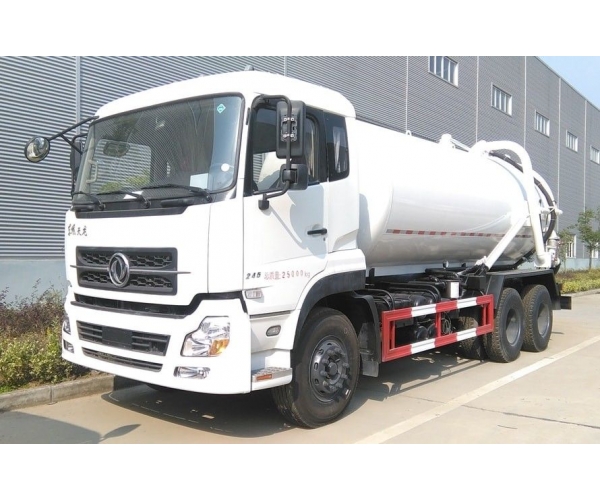

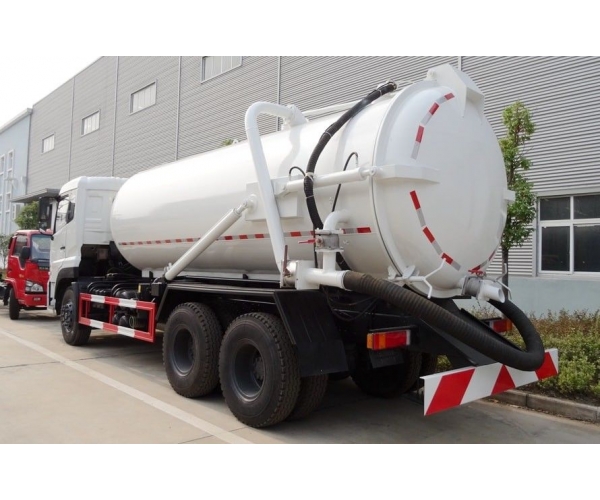

Reference Photos
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Dongfeng 6x4 15-18CBM Fecal Sewage Suction Trucks：
Using for city and factory sewer cleaning, assist urban sanitation project and make world cleaning!
* Standard configuration Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
* Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
* Chassis：Traction type LHD，Drive type 6x4，Wheelbase 4350+1300mm，Tire specification 11.00R20
* Engine： Engine model C260 33，Emission level Euro 2，Displacement 8300ml，output 191kw/260hp
* Tanker：Capacity 18000L，Body thickness 6mm, high quality carbon steel，Structure Welding, vacuum tank, Cylindrical
ISUZU 4~6m³ Garbage Compactor trucks for Waste Collect
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
City Sanitation Water Sprinkler Trucks：
Brand：HOWO，Dongfeng
Chassis：4x2,6x4,8x4
Capacity：10000L，15000L，20000L
2 tank mouths, standard water pump, front spray, back spray, rear platform, anti-aircraft gun, side spray and fire hydrant, excluding self-flow port, other factory standards
* Cabin：ZZ1257N4647 , HW 76 Cab, with one bed and air condition, 70°hydraulically tillable to the front.
* Vehicle Main Dimensions：
Overall dimensions (L x W x H)：11000x2500x3300mm
Wheel base (mm)：1350+4600
* Engine Brand：SINOTRUK HOWO
Model：WD615.69
Type：4-stroke direct injection , 6-cylinder in-line with water cooling
Horse Power（HP)：336HP (273Kw)
Displacement: 9.726L; Compression ratio: 17：1
Twin cylinder air compressor
Road Sweeping Truck ISUZU
Features:
---- 5 CBM dustbin and 2 CBM water tank
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.
Dongfeng 4X2 5~8CBM Garbage Compactor Truck
1. Making garbage collection simple: Clear the city and eliminate the secondary pollution.
2. High compression ratio and large loading capacity which is 2 times larger than usual truck.
3. Easy Full Automatic Operation: electrical control system for loading and unloading operations.
4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.
5. Double Operation System: electrical control and manual operation greatly improves usage rate.
6. Equipped with hermetic dustbin.
7. Hydraulic system: Hydraulic ejection plate, Hopper, Lifting, Compression,Receiving, Loading system.
8. Operating system: Rear operation panel board, Manual operation panel board.
Dongfeng 4x2 10-12CBM Garbage Compactor Trucks：
•Compressed Garbage Truck change the dirty appearance of the city and eliminate the secondary pollution
•High compression ratio and large load, maximum crushing pressure is 12 tons, loading capacity is 2 times largeer than usual garbage truck.
•Easy Full Automatic Operation: computer control system for loading and unloading operations.
•One Person Operation: Reducing sanitation working, greatly improves the working environment.
•Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
Dongfeng 4x2 12CBM Road sweeper Trucks
Road sweeper is a special-purpose vehicle for road garbage cleaning. As one of the sanitation equipment, the road sweeper is a new and efficient cleaning equipment that integrates road cleaning, garbage recovery and transportation. Widely used in urban streets, municipal squares and airport pavements, urban residential areas, parks and other road cleaning operations.
* Equipped with 4 sweeping brush，Famous moto
* Cummins 140 hp deputy engine
* French control switch; Joint venture solenoid valve group;
* Maintenance-free self-separate clutch
* Maintenance-free fan; Stainless steel water tank and dustbin
* Rear LED arrow lights, manual pump for emergency system.
* Maximum sweeping width 3.2 m, inhaled sizeφ120 mm
* Optional: monitoring, sprinkler function, self-cleaning function for dustbin.（Additional Cost ）
5CBM Road Sweeper Truck with 3.5M3 Vacuum Dust Tank for Narrow Street
Road sweeping also named as road cleaning truck is a new high-efficient sweeping equipment which has multi-functions like road washing,sprinkling,garbage collecting and transportation...Sweeper truck can be widely used in main city road,airport road,residential area road,park,terminal,square,cement factory,power plant and etc.
1. Dongfeng Chassis: Chaochai Engine 95HP,
2. Heavy Duty Garbage Bin with different size options: 4000L to 18000L (4CBM to 18CBM)
2. Hydraulic Control Loading & Unloading System
3. Leakage Proof Devise to contain Sewage Water Inside
4. Automatic Key Control & Hydraulic Handle Control
5. Best Choice for Garbage Transporation Inside City.
Dongfeng 4x2 8-12CBM City Sanitation Feces and Sewage Suction Trucks：
With power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment.With water and gas oil separators, anti-overflow valve.With dump function, hydraulic opening back door.
Sewage suction truck is a new type of sanitation vehicle that collects and transfers sludge and sewage for transportation and avoids secondary pollution. It can self suction and self discharge with high speed, large capacity and convenient transportation. It is suitable for collecting and transporting feces, mud, crude oil and other liquid substances.
The vacuum pump of the sewage suction truck has large suction force and long suction range, which is especially suitable for the suction, transportation and discharge of the sediment in the sewer, especially for the suction of large objects such as sewage mud, mud, stones, bricks, etc.
